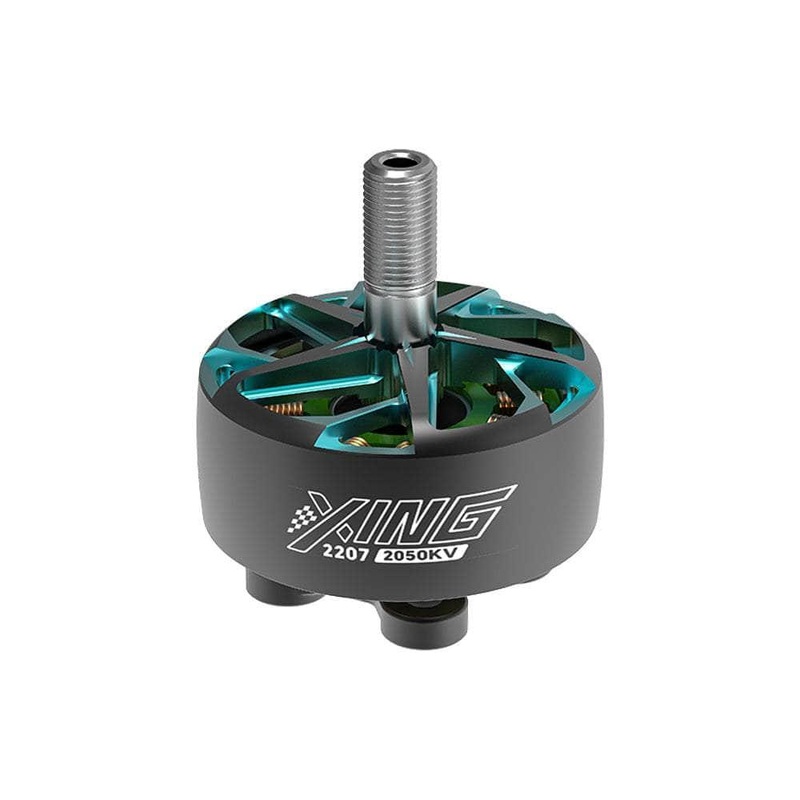

Description Reviews (0) This motor has been specially developed for Race drones, such as the Mach R5 Racing drone. Thanks to advanced construction in the manufactory, its smooth, reliable and powerful performance is improved yet again. By introducing new center-slotted N52H curved arc magnets, the motor’s response time is drastically shortened. As a result of the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current), causing more efficiency and higher power! iFlight is one of the most respected companies in the FPV community when it comes to premium motors; this is one ofthem. Check out ouriFlightselectionand ourentire selection of motors! Specifications Model: R5 2207 Motor KV: 2050KV Weight(included wire): 34.6g Dimension: 28.x31.5mm Interphase Resistance: 56.3m Input Volts: 25.2V Peak Current: 49.53A Max Watt: 1166.4W Mounting Holes: 16×16 3mm Shaft Diameter: 5mm Shaft Protruding Length: 12.5mm Lead: 150mm/20AWG Magnet: N52H Curved Configuration: 12N14P Bearing Type: NSK Bearing Specification: 9x4x4 Winding: Single Strand copper winding Includes 1xiFlight R5 2207 2050Kv Motor 4x M3x8 1x M5 Flanged Nylon Insert Lock Nut Reviews There are no reviews yet. Be the first to review “(NEW, OPEN BOX) iFlight R5 2207 Race FPV motor” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
