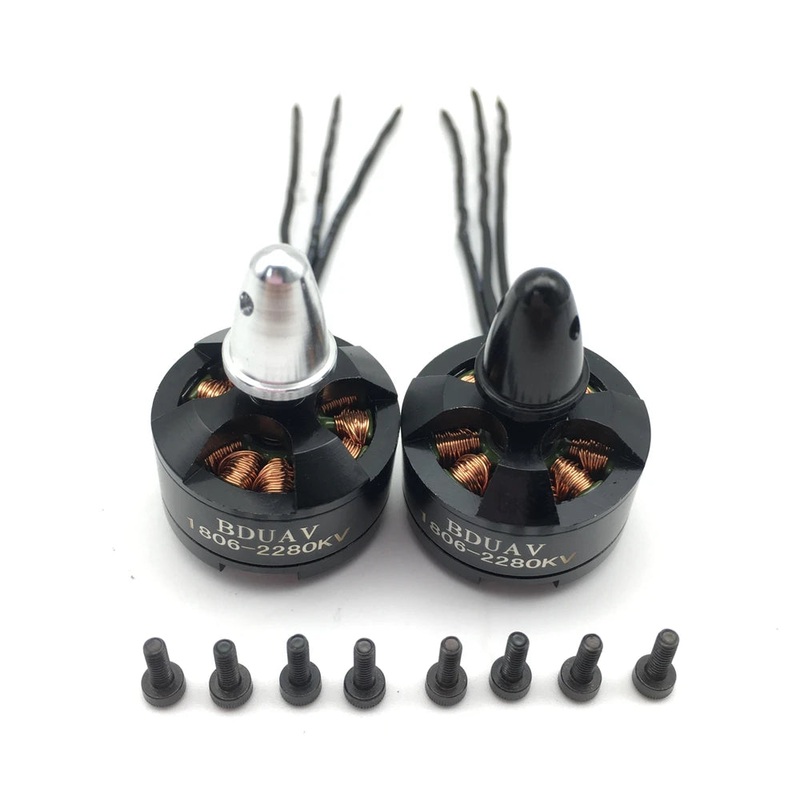

1806 2280KV CW/CCW 2-3S Brushless Motor for 250 FPV Racing Drones & RC Multirotors 1pcs ccw
$12.92
$15.5
Description Reviews (0) Overview The 1806 2280KV Brushless Motor is a compact and efficient power solution for 250/260-class FPV racing drones, mini multirotors, and DIY RC aircraft. Designed to run on 23S LiPo batteries, this motor offers a great balance between power, efficiency, and weight. Available in both CW and CCW variants: CW motor cap tightens clockwise (motor spins counterclockwise) CCW motor cap tightens counterclockwise (motor spins clockwise) Perfect for symmetrical quadcopter builds with matched prop rotation. Specifications Parameter Value Model 1806 2280KV KV Rating 2280KV Stator Diameter 18mm Motor Weight 16g (without cables) Input Voltage 2S3S LiPo Max Current 6.5A Max Power 70W Motor Type CW or CCW (selectable) Performance Test Summary (MT1806-2280KV) Voltage Propeller Thrust (g) Power (W) Efficiency (g/W) RPM 7.4V 5030 Carbon 210 32.6 6.4 13530 7.4V APC 64 280 50.3 5.6 12030 7.4V 54.5 Tri-Blade 240 45.9 5.2 12330 11.1V 5030 Carbon 380 88.8 4.3 18510 11.1V APC 64 460 125.4 3.7 15160 11.1V 54.5 Tri-Blade 410 117.7 3.5 15910 Recommended Use 250 / 260 mini FPV racing drones RC quadcopters and multirotors Fixed-wing DIY aircraft (lightweight class) Package Includes 1 1806 2280KV Brushless Motor (CW or CCW as selected) Product test record for 1806-2280KV motor. Data includes voltage, propeller size, current, thrust, power, efficiency, and RPM at different settings. Performance varies with voltage and propeller type. rcdrone.top. All rights reserved. Reviews There are no reviews yet. Be the first to review “1806 2280KV CW/CCW 2-3S Brushless Motor for 250 FPV Racing Drones & RC Multirotors 1pcs ccw” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
