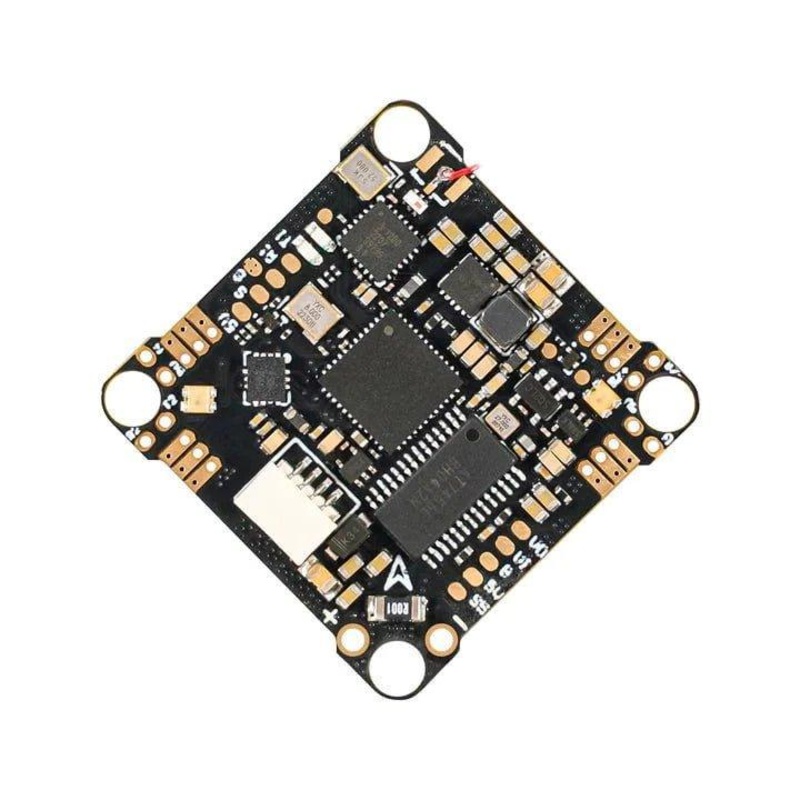

Description Reviews (0) The BetaFPV F4 1S 12A AIO Brushless Flight Controller V2.2 is the default FC forCetus X brushless whoop quadcopter, also great for85mm whoop drones likeMeteor85and3″ toothpick drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone. BetaFPV updated the FC to V2.2 with BMI270 gyro and BB51 ESC hardware in place of ICM20689 gyro and BB21 ESC hardware. Check out all ourwhoop flight controllers, and all ourBetaFPV gear! Specifications CPU: STM32F411CEU6 ( 100MHZ ) Six-Axis: BMI270 Built-in Receiver: SPIExpressLRS 2.4G / Frsky SPI Receiver antenna:Line antenna Size: 30mm x 30mm, fully mounting pattern compatible with the whoop frame in the current market Firmware version: betaflight_4.3.1_BETAFPVF4SX1280 (ELRS) OSD: Built-in BetaFlight OSD Recommend VTX: Power Cable: 55mm, withBT2.0 connector Weight: 3.6g (Without power cable included) Power supply: 1S-2S Current: 12A continuous and peak 25A (3 seconds) Support BLHeliSuite programmable Factoryfirmware: C_X_30_REV16_7.hex for BB51 BLHeli_S hardware Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM Includes 1x F4 1S 12A AIO FC Wiring Diagram Reviews There are no reviews yet. Be the first to review “BetaFPV F4 1S 12A 2022 Toothpick/Whoop Flight Controller – Choose Receiver” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
