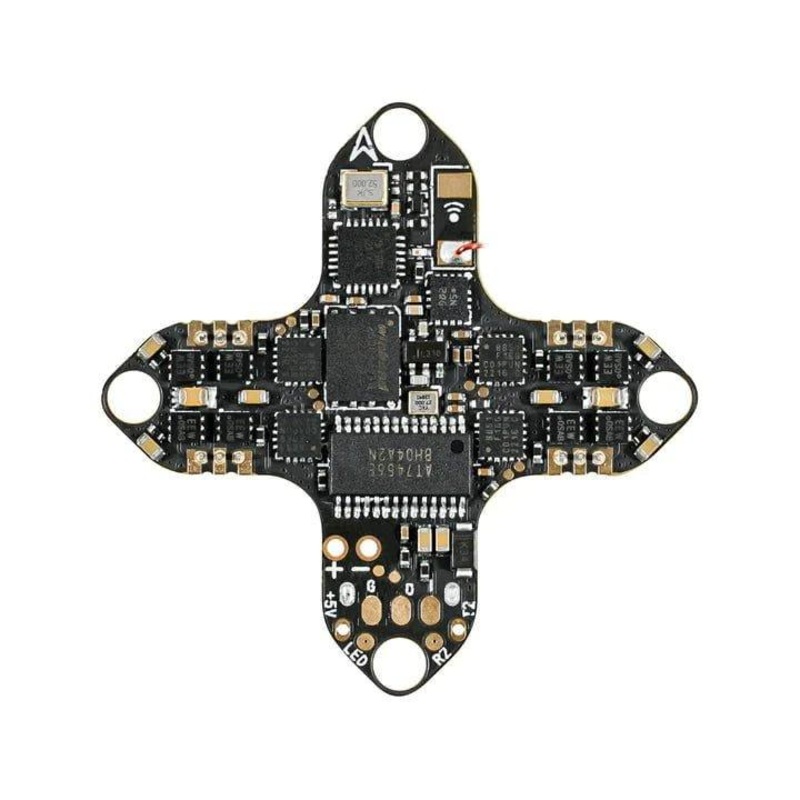

Description Reviews (0) The ultralight F4 1S 5A AIO Brushless Flight Controller is backin stock with new and upgraded features. Compared to the previousversion, the new board uses Serial ExpressLRS 2.4G instead of SPI ELRS 2.4G so that it can support ExpressLRS V3.0 and also has a Frsky RX version to choose from. We updated the FC with high-quality BMI270 gyro and BB51 ESC hardware. In addition, this new board supports the Betaflight Blackbox function. Check out all ourwhoop flight controllers, and all ourBetaFPV gear! Specifications CPU: STM32F411CEU6 ( 100MHZ ) Six-Axis: BMI270 Built-in Receiver: Serial ExpressLRS 2.4G / Frsky SPI Receiver antenna:Line antenna Size: 30mm x 30mm, fully mounting pattern compatible with the whoop frame in the current market Firmware version: betaflight_4.3.1_BETAFPVF411 OSD: Built-in BetaFlight OSD Recommend VTX: Power Cable: 55mm, withBT2.0 connector Weight: 3.6g (Without power cable included) Power supply: 1S Current: 5A continuous and peak 6A (3 seconds) Support BLHeliSuite programmable Factoryfirmware: A_X_5_.HEX for BB51 BLHeli_S hardware Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM Includes 1x BetaFPV F4 1S 5A Toothpick/Whoop Flight Controller – Frsky 4x M1.2x4mm Screws 4x M1.4x5mm Screws 4x Anti-vibration Rubber Dampers Wiring Diagram Reviews There are no reviews yet. Be the first to review “BetaFPV F4 1S 5A Toothpick/Whoop Flight Controller – FrSky” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
