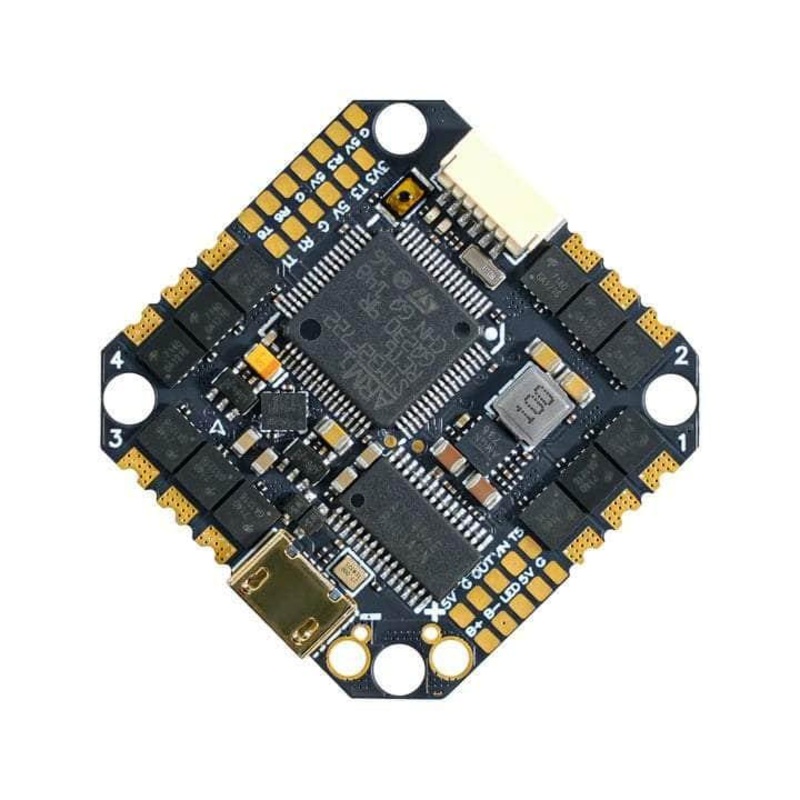

Description Reviews (0) F722 2-6S AIO 35A FC is a veryreliableFC that is made to meet your advanced FPV needs. Comes with an F722 chip and a BLHeli_32 ESC, this board provides a better performance capability and higher calculation speed, which brings pilots a more stable and smoother flight. What’s more, F722 AIO FC has specially added a 6-pin connector for DJI Digital VTX, just plug & play, less solder work needed,super easy to install.It can handle35Acontinuous current (40A burst), supports the2-6Slipo battery. Check out all ourwhoop flight controllers, and all ourBetaFPV gear! A very in-depth video on theBetaFPV F722 V2 2-6S AIO Whoop/Toothpick Flight Controller. Features Built-in STM32F722RET6 CPU, F722 FC is more powerful than F4. It features a fast processing speed and stable performance, providing reliable and smooth flight for 4″-5″ drones. F722 AIO 35A FC has specially added a 6-pin connector for HD Digital VTX, just plug & play, less solder work needed, perfect for the pilots who enjoy the HD Digital VTX system. 6 full UARTs are available on this board. With plenty of UARTS, Pilots could havemore options for external parts likeVTX, GPS, Receiver, and other components. It can handle 35A continuous current (40A burst), supports the 2-6S lipo battery, and gives the drone a more robust flight performance. With the 6S battery and this F72235A AIO FC,the drone will break through the limit of the power of the toothpick drone, exploring more possibilities in 4-5” drones. The new BLHeli_32 ESC version is built-in a 16MB flash memory chip dedicated to Blackbox logging, which is an extremely powerful tool for tuning and troubleshooting an FPV drone. It has a faster processing speed and up to 128k PWM frequency, providing a more stable and smoother flight for pilots. V2 with BLHeli_32 ESC V1 with BLHeli_S ESC PWM Frequency 24k-128k 24k-96k ESC Firmware BLHeli_32.9, 32-bit BLUEJAY V0.16, 8-bit Blackbox 16MB Not included Weight 9.00g 7.06g Board Thickness 1.6mm 1.4mm BLHeli_32 ESC Firmware The F722 35A AIO FC has two boards with different ESC versions for choice. The V2 board usesAT32F421G8U7 MCU, a 32-bit ESC chip, with BLHeli_32 ESC firmware. This firmware supports up to 128k PWM frequency, featuring faster processing speed and unlocking more functions for the flight. BLHeli_32 ESC BLHeli_S ESC MCU AT32F421G8U7 EFM8BB21F16G-C Firmware Version BLHeli_32.9, 32-bit BLUEJAY V0.16, 8-bit PWM Frequency 24k-128k 24k-96k Bidirectional DSHOT Support Support Signal Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Know More About ICM42688 Gyro The F722 FC ICM42688 version has the same solder pad and layout as BMI270 except for the gyro chip. Besides, you can also find the difference in Betaflight settings. The ICM42688 gyro supports 8.00 kHz gyro update frequency compared with the BMI270 gyro which supports 3.20 kHz. When using a 6S battery, the ICM42688 gyro has a good performance. The degree between ICM42688 and BMI270 gyro is different. When configuring F722 FC ICM42688 version, the gyro degree should be set to CW270. Diagram for F722 35A AIO FC The below picture is the top front of the F722 35A AIO Brushless FC. (Both V1 and V2 boards have the same solder pad and connector ports.) The below picture is the bottom front oftheF722 35A AIO BrushlessFC. (Both V1 and V2 boards have the same solder pad and connector ports.) There are 2 LEDs on the bottom of the board to indicate the status, including theFCLED (Blue) and FC Power LED (Red). The LED status for V1 and V2 boards are the same. LED Status Description FC LED (Blue) Solid Armed FCLED (Blue) Extinguished Disarmed Power LED (Red) Solid Power on How to Connect the External RX&VTX To connect the external RX&VTX, please refer to the below diagram. F722 35A AIO V1 and V2 boards have the same soldering pad and connecting ports. Specifications Flight Controller Item: F722 35A AIO Brushless Flight Controller Weight: 9.00g (BLHeli_32) CPU:STM32F722RET6 Six-Axis: ICM42688 Mounting hole size: 26mmx26mm Firmware version: betaflight_4.3.0_STM32F7X2 OSD: Built-in BetaFlight OSD (OSD chip:AT7456E) Support programmable LED like WS2812 etc Built-in current sensor Blackbox: 16MB(V2 with BLHeli_32 ESC included) ESC Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Receiver: Support Frsky XM/XM Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection) Input voltage: 2S-6S Lipo Continuous current: 35A Peak current: 40A ESC firmware: BETAFPV_35A_V2_BLHeli_32_Multi_32_9 (BLHeli_32) Indicators: Power indicator (Red) / FC indicator (Blue) Capacitance: CS|5*10*13mm|470F|35V Connector: 80mm 14AWG silicone cable with XT60 Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series Includes 1xBetaFPV F722 V2 2-6S AIO Whoop/Toothpick Flight Controller (w/ 35A 32Bit 4in1 ESC) – ICM42688 Reviews There are no reviews yet. Be the first to review “BetaFPV F722 V2 2-6S AIO Whoop/Toothpick Flight Controller (w/ 35A 32Bit 4in1 ESC) – ICM42688” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
