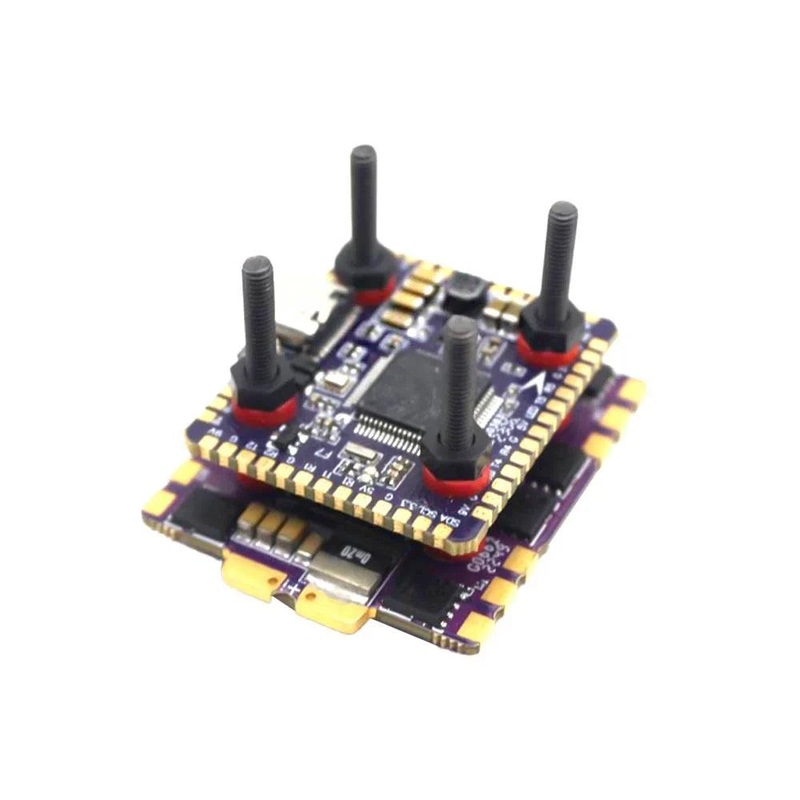

Description Reviews (0) TheFlycolor Raptor TR20 Mini Stackfeatures an F722 Flight Controller, equipped with dual VTX and dual LED pads, offering a convenient selection nearby for enhanced customization. With a voltage output range of 3.3V/0.1A, 5V/3A, and 9V/1.5A, this stack ensures stable power distribution. The MPU-6500 SPI gyro and STM32F722 MCU provide precise control, while the 60A ESC, with configurator support via BLHeliSuite32, INAV firmware compatibility, and a 20x20mm mounting pattern, delivers optimal performance for your FPV drone. Compact at 44x36mm and lightweight at 23g, the Raptor TR20 is designed for efficiency, supporting LiPo batteries from 3-6S and making it an ideal choice for your FPV drone and cinematography endeavors. Check out all our 30x30mm Stacksand the rest of our Flycolor Products! Features: Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling The code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and *Multishot MOSFET with high performance and low Rds, not afraid of large current, more suitable for rapid flight Miniaturized and lightweight design, better routing, and component layout Configurator for ESC Parameter setting and upgrading: BLHeliSuite32 MCU STM32G0, ARM 32-bit Cortex MCU, frequency up to 64 MHz All Dshot and Proshot signals are supported 20x20mm, M3 mounting pattern PWM frequency up to 128K Flycolor_Raptor_5 firmware Specifications F722 FLIGHT CONTROLLER Dual VTX and dual LED pads for convenient selection nearby. Voltage output: 3.3V/0.1A, 5V/3A , 9V/1.5A Gyro: MPU-6500 SPI FC BEC: 3.3V5V9V MCU: STM32F722 Const Curr.: 60A Size(mm): 44*36 Burst Curr.: 70A USB: Type C Weight: 23G Lipo: 3-6S 60A ESC Configurator for ESC Parameter setting and upgrading: BLHeliSuite32 INAV firmware is supported FLYCOLORF7MINI ARM: 32-bit Cortex, frequency up to 64 MHz ESC firmware: Flycolor_Raptor_5 Mounting pattern: 20x20mm, M3 PWM frequency: up to 128K MCU: STM32G0 Includes 1x Flycolor Raptor TR20 Mini Stack – F722 FC 60A ESC – 20×20 1x 3mm Mounting Accessories Set 1x ESC /FC connecting wire 1x Electrolytic capacitor 1x Power wire(XT60) Reviews There are no reviews yet. Be the first to review “(PRE-ORDER) Flycolor Raptor TR20 Mini Stack – F722 Flight Controller 60A 3-6S BLHeli32 4in1 ESC – 20x20mm” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
