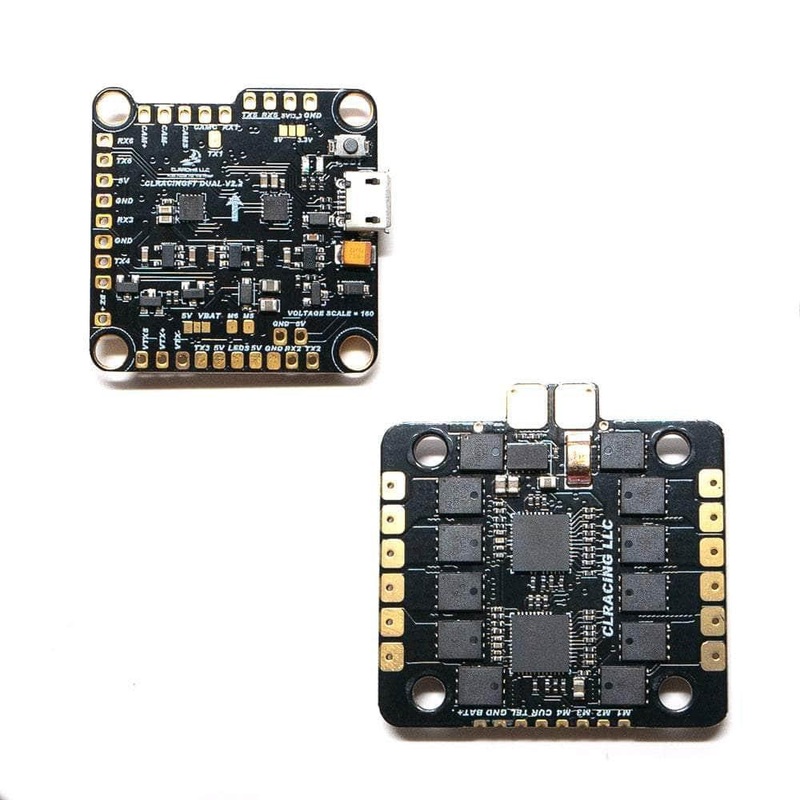

Description Reviews (0) CLRacing is well trusted in the industry and theCLRacing F7 V2.2 45A 2-6S 30×30 Stack/Combo will show you exactly why. Durable, feature rich, and easy to solder to. Check out the specs below! This F7 FC and 45A 4in1 ESC are available separately as well! Choose either dual or single gyro version. Check out all our30×30 Stacks and Combosand our full range ofCLRacing products! Specifications FC Input Voltage: 2-8S MCU:STM32F722RET6216MHz IMU:ChooseDual ICM20602 or Single MPU6000 OSD:Yes BlackBox: 32MB UARTS: 6 ESC Connections:6 Reverse Polarity Protection: Yes Camera Control: Yes BEC: 5V/1.5A, 3.3V/250mA Buzzer Pads: Yes LED Pads: Yes Mounting Dimensions: 30×30 ESC Input Voltage: 2-6S Max. Continuous Current: 45A Max. Burst Current: 55A Firmware: BLHeli_32 Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW Current Sensor: Yes Current Sensor Scale: 250 Dimensions 43.5mm x 46.5mm Mounting Dimesions: 30.5×30.5mm 4mm Weight: 13.5g Includes 1xCLRacing F7 V2.2 30×30 Flight Controller 1xCLRacing 45A V2 32bit 30×30 4in1 ESC 1x Wiring & Accessory Kit Reviews There are no reviews yet. Be the first to review “CLRacing F7 V2.2 45A 2-6S 30×30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) – Dual ICM20602” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
