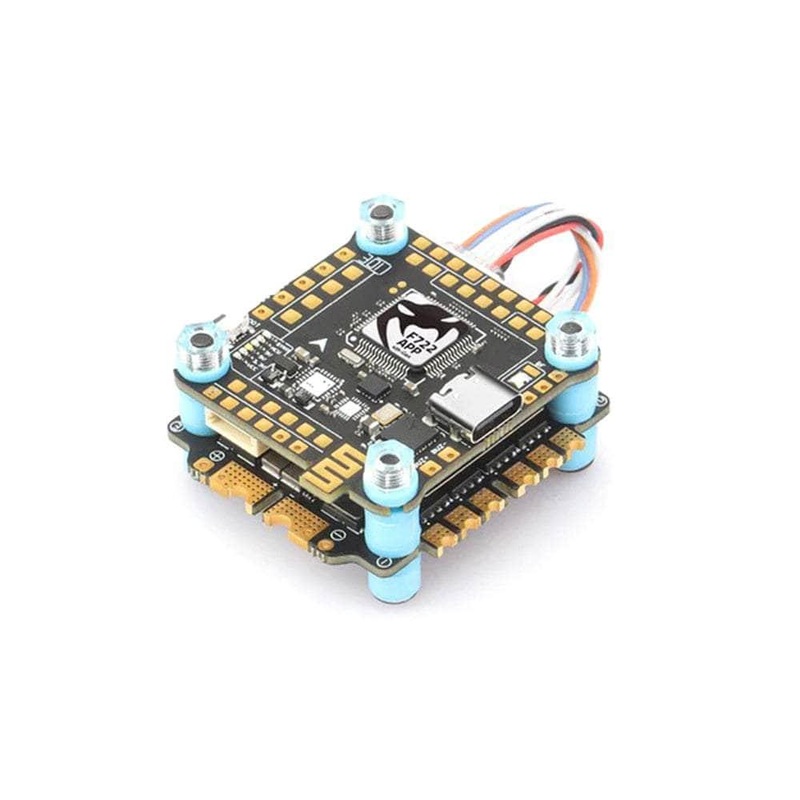

Description Reviews (0) This stack pairs theMamba MK4 F722APP FC and the Mamba F55_128k 55A 4in1 ESC. With multiple UARTS and BECS, this stack can run all the peripherals you could ever want with ease. Browse ourStacks & Combosand ourDiatone Gear! Specifications Mamba MK4 F722 APP Voltage Input: 3-6S MCU:STM32F722 Gyro: ICM42688P OSD:AT7456E Blackbox: 16M Flash Memory Uarts: 6Set ESC Signal: 8Set LED Controller: BF LED/MB LED I2C: Yes F.Port: Yes Buzz: Yes WiFi: Yes TVS Protection: Yes BEC: 3.3V 0.5A & 5V 3A & 9V 3A Mounting Pattern: 30×30 M3 Mamba F55 128k Input Voltage: 3~6S Lipo (12.6V~25.2V) Max ContinuousCurrent: 55A Max Burst Current: 65A BEC: No TargetBLHeli_32 MAMBA F55_128K Protocol: Dshot300/600/1200 PWM Range:24~128K TVS Protection:Yes Mounting Pattern: 30×30 M3 Includes 1xDiatone Mamba MK4 F722 APP F55_128k 3-6S 30×30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC) Wiring Diagram Reviews There are no reviews yet. Be the first to review “Diatone Mamba MK4 F722 APP F55_128k 3-6S 30×30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
