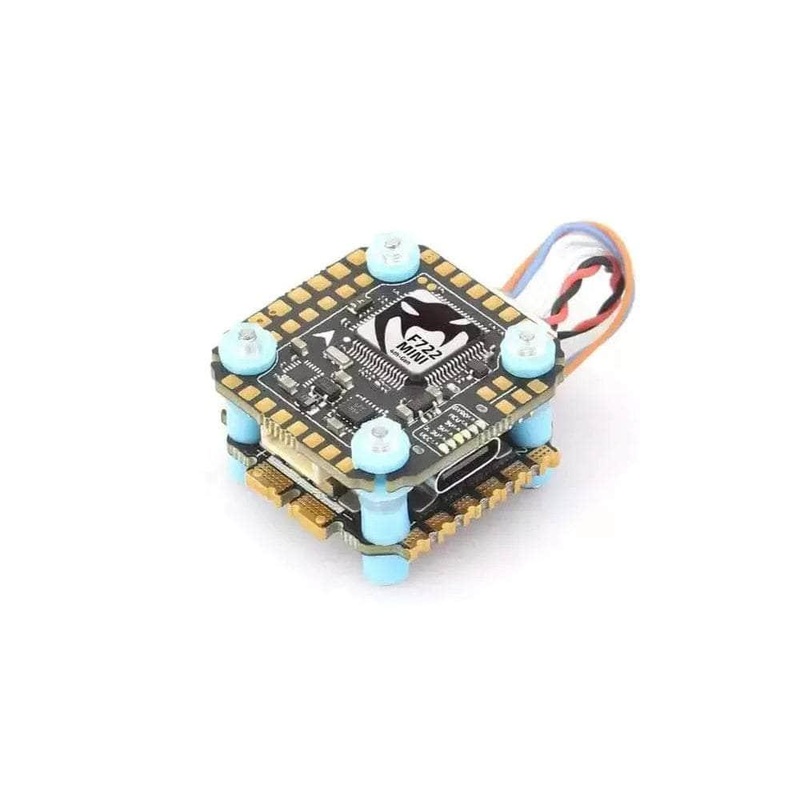

Diatone Mamba MK4 F722 Mini F40_128k 3-6S 20×20 Stack/Combo (F722 FC / 40A 128k 32Bit 4in1 ESC)
$25.24
$49.98
Description Reviews (0) Diatone has released their 4th generation F722 mini stack. The MK4 F722 mini 20×20 stack boasts larger soldering pads, wider pad spacing, more UARTs, l2C and is configurable through the Speedy Bee App via built-in Wi-Fi! So much power from a lightweight stack! Browse ourStacks & Combosand ourDiatone Gear! Features The pad area increased by 30% Pad spacing increased by 100% MP9943 synchronous rectifier BEC MINI series upgrade DJI interface and 5v 15W/9V 18W 2 set BEC USB Type C 6 Set UART and I2C 4 Set Power Protection 32Bit ESC all support 128K Mini series FC uses 2mm and 3mm mounting holes, w/ a special dampening ring Upgrade the twisted pair anti-jamming cable and reinforcement process Specifications Mamba Basic Mini F722 MK4 Input: 2-6S MCU:ICM42688P Barometer: Yes OSD: Yes Blacbox: 16M Flash Memory Uarts: 6Set Protocol: Dshot300/600/1200 ESC Telemetry: Yes Power Led: Yes LED Controller: BF LED F.Port: Yes Buzz: Yes TVS Protection: Yes BEC: 3.3V 0.5A & 5V 2.5A Mounting Pattern:20×20 M3/M2 Mamba F40 128k Input Voltage: 3-6S Lipo Max ContinuousCurrent: 40A Max Burst Current: 45A BEC: No TargetBLHeli_32 MAMBA F40_128K_MINI Protocol: Dshot300/600/1200 PWM Range:24~128K TVS Protection:Yes Mounting Pattern:20×20 M2/M3 Includes 1xDiatone Mamba Basic MK4 F722 Mini F40_128k 2-6S 20×20 Stack/Combo 5x M2 Silicone Grommets 5x M3 Silicone Grommets 5x M2 ESC Isolation Columns 5x M3 ESC Isolation Columns 1x 8 Pin single-ended cable for flight controller 2x 8 Pin Cable 1x 6 Pin Air Unit Cable 1x XT60 1x Capacitor Wiring Diagram Reviews There are no reviews yet. Be the first to review “Diatone Mamba MK4 F722 Mini F40_128k 3-6S 20×20 Stack/Combo (F722 FC / 40A 128k 32Bit 4in1 ESC)” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
