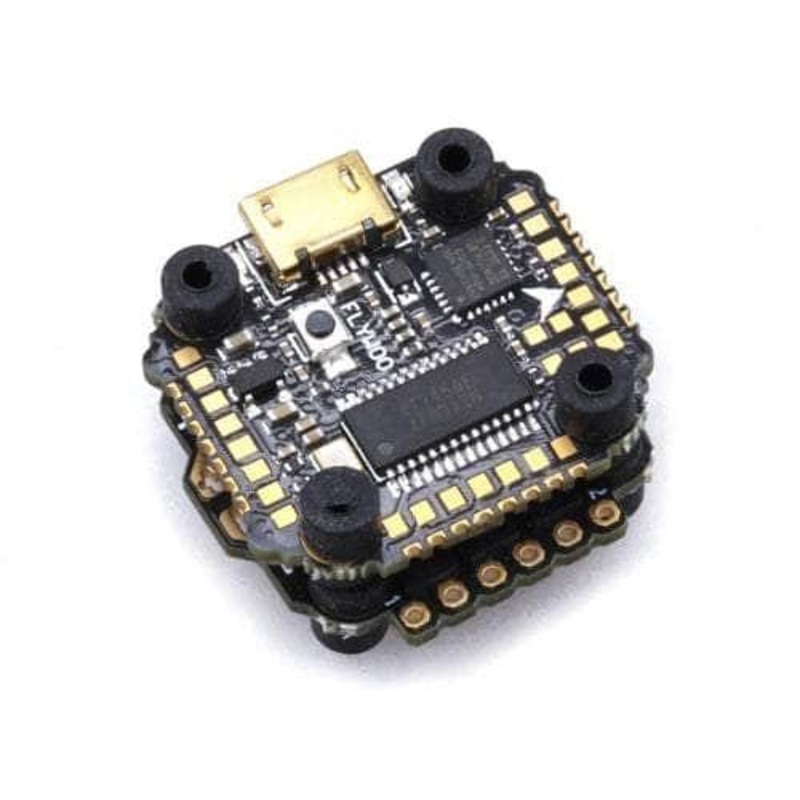

Flywoo GOKU GN405 2-4S 16×16 Stack/Combo (GN405 NANO FC / 13A 4in1 ESC)
$12.7
$22.48
Description Reviews (0) With an already impressive lineup of flight controllers, Flywoo has released the GOKU GN405 Nano. An economical and durable stack, the GN405 is packed with features including a barometer, 16MB black box, 6 complete hardware serial ports, I2C functionality, and WS2812 LEDs on each corner.It is specifically designed to be pin mounted to the GOKU BS13A / 35A 4-in-1 16×16 ESCs but can also be soldered via pads. The programmableWS2812 LED on each corner provides low-profile lighting for this tiny FC Check out all our16×16 stacks,and ourFlywoo gear selection! Specifications GN405 NANO FC Dimensions: 22x22mm Weight: 2.3g Mounting Pattern: 16×16, M3 Holes MCU: STM32F405 BGA UARTS: 6 1/2/3/4/5/6 I2C: SCL/SDA GYRO:ICM42688 BARO: BMP280 BEC: 5V 2A LED: 4xWS2812 FLASH: 8M Input Voltage: 2-6S Firmware: FLYWOOF405NANO BS13A 4-IN-1 ESC Support: Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Input Voltage: 2-4S Lipo Continuous Current: 13A Firmware: BLHELI_S Mounting Pattern: 16x16mm Weight: 2.5g Includes 1x GOKU GN405 & BS13A 2-4S 16×16 Stack/Combo Wiring Diagram Reviews There are no reviews yet. Be the first to review “Flywoo GOKU GN405 2-4S 16×16 Stack/Combo (GN405 NANO FC / 13A 4in1 ESC)” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
